General Info

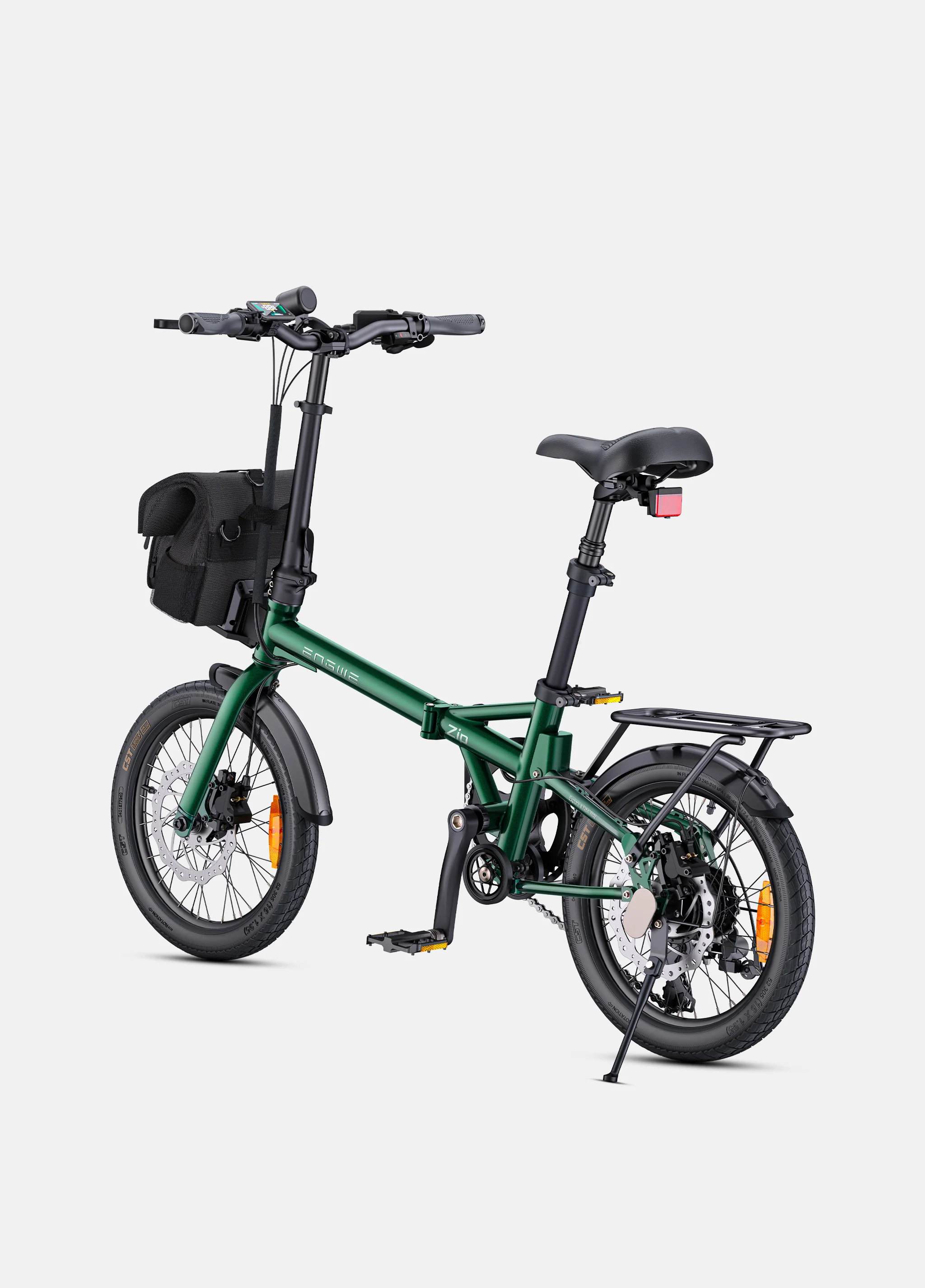

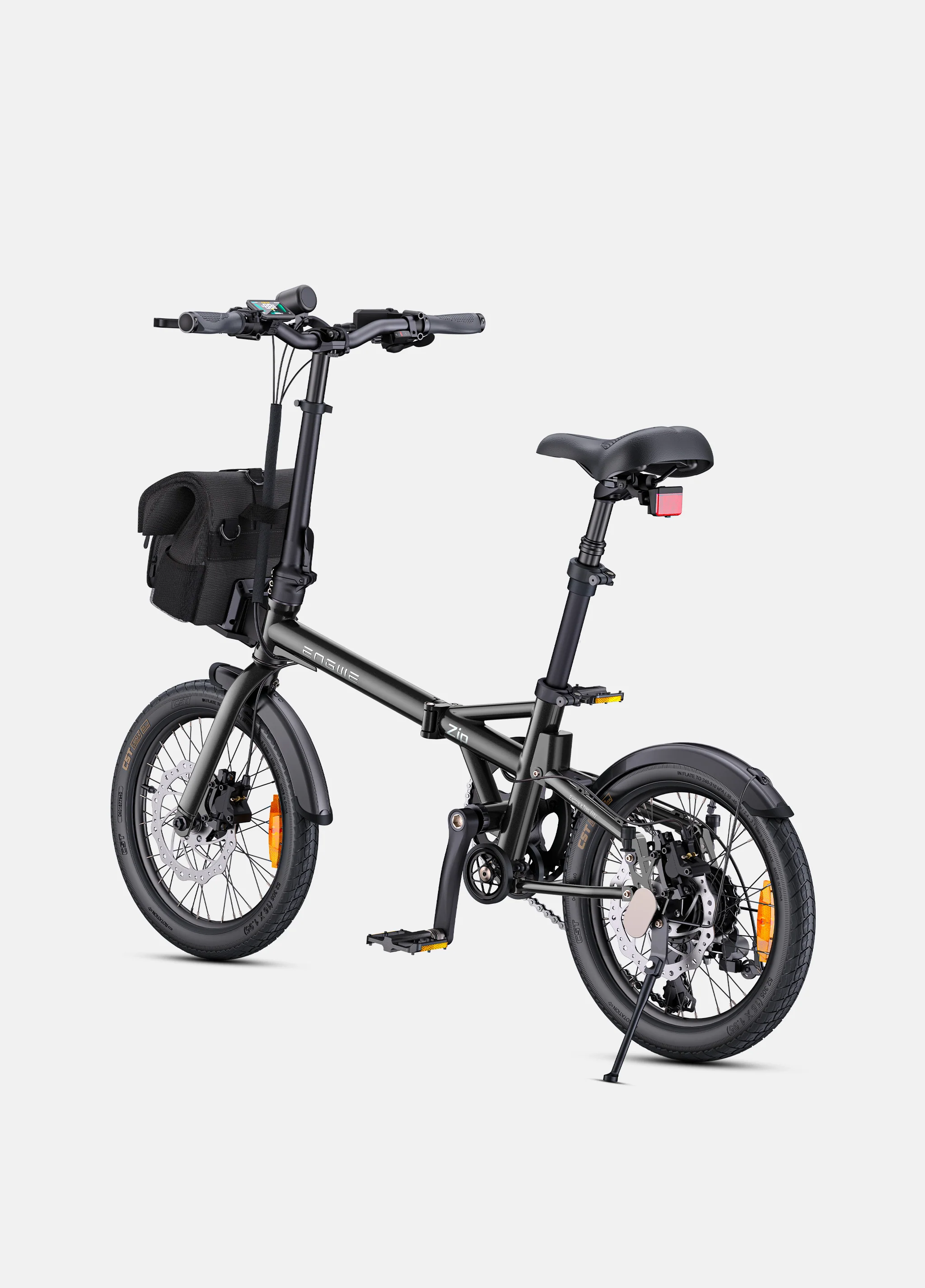

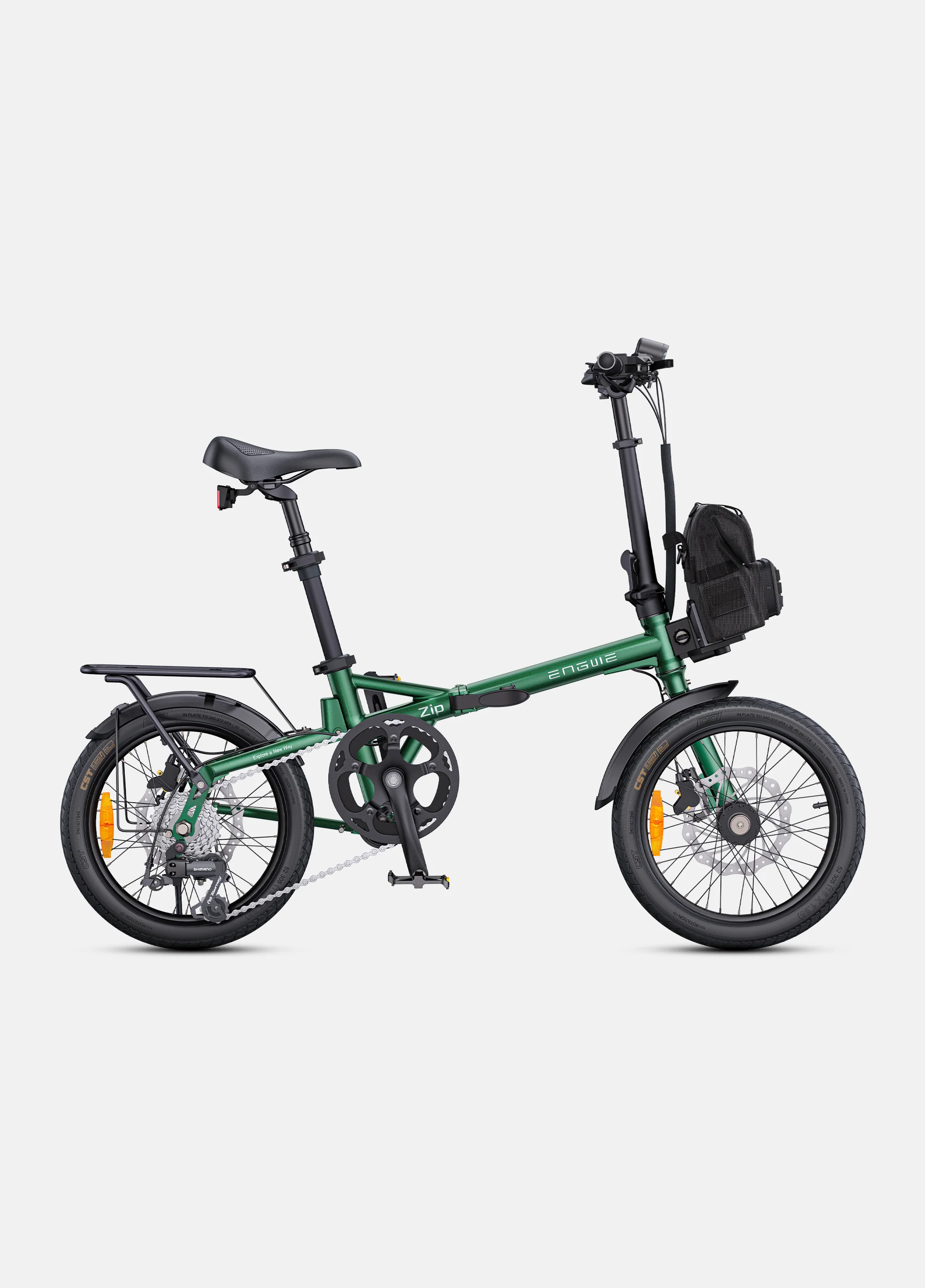

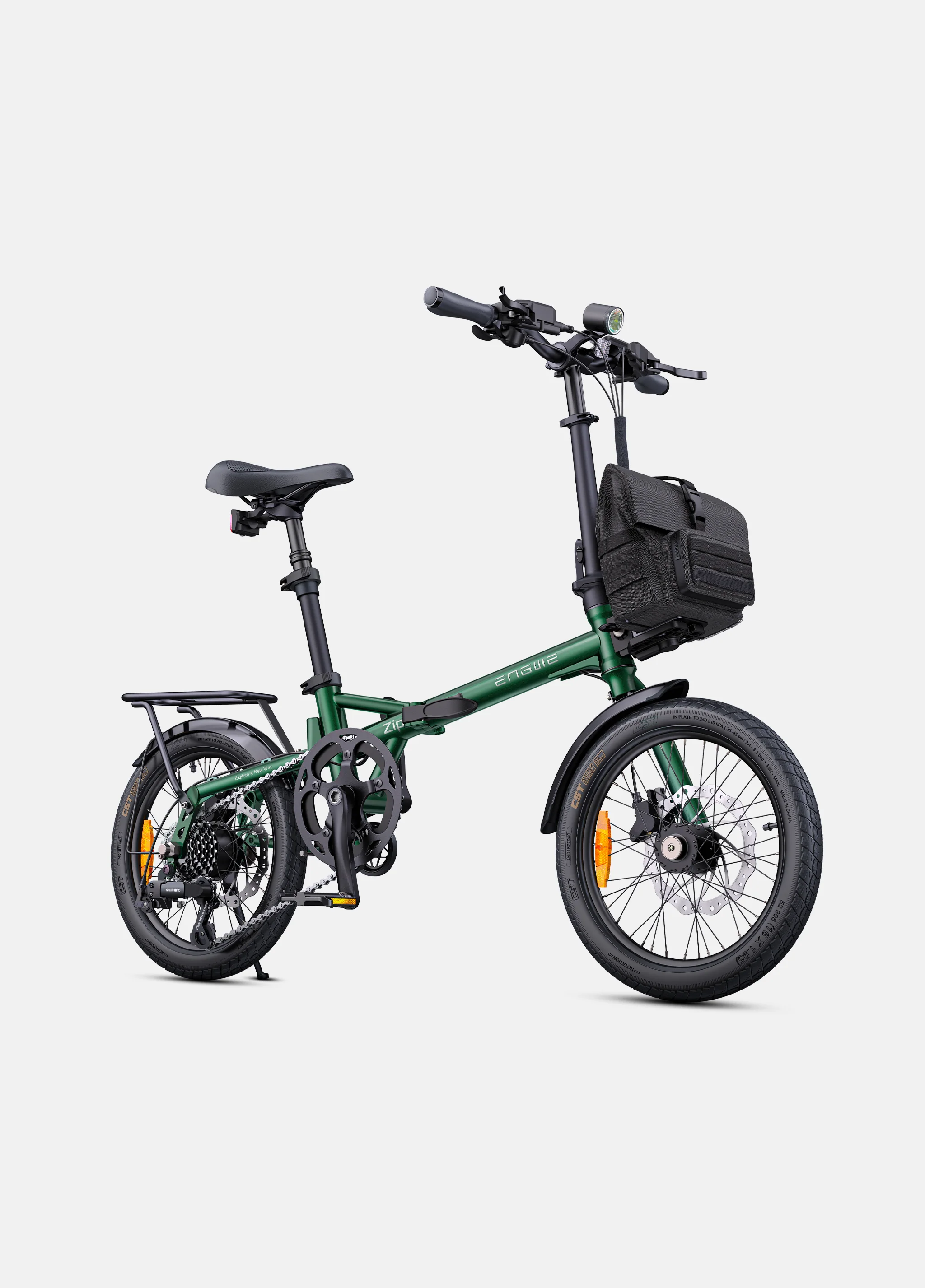

Model: ENGWE Zip

Max Load Capacity: 120 kg (264.55 lbs)

Ride Heigh: 5'0" - 6'2" (155cm - 190cm)

Certification: CE (EN15194) by TUV certification

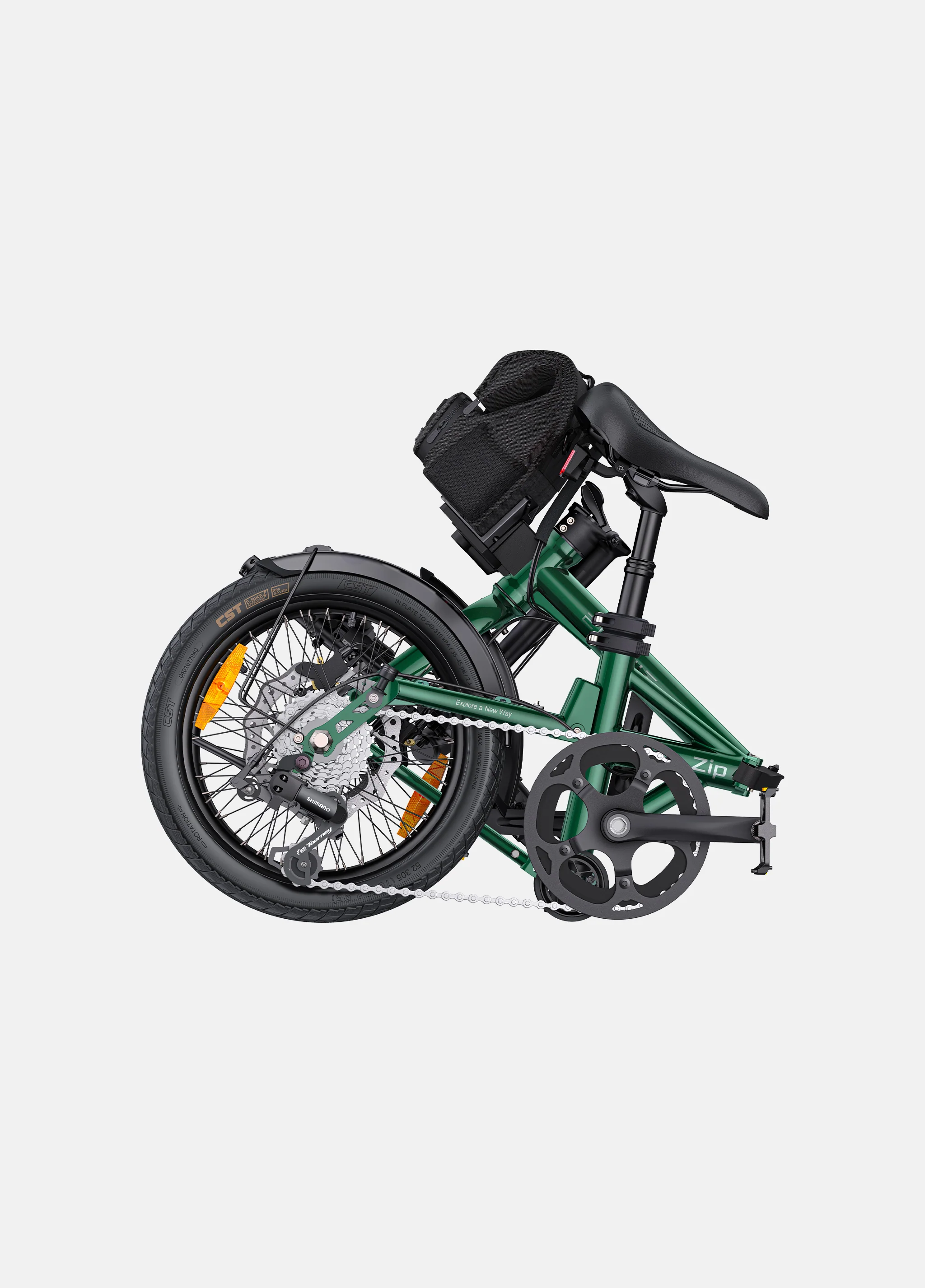

Fold: Yes

Pedal Assist：3 Levels

Real-World Range:

120 km(PAS 1)

85 km(PAS 2)

60 km(PAS 3)

Waterproof Ratings:

IPX7(Waterproof Wiring)

IPX6(Display & Lights)

IPX5(Motor & Controller)

IPX5(Battery)

Terrain:

Tarmac Roads & Bicycle Routes

Gravel-Paved Paths

Country Roads & Paved Trails

Bike Weight (Without battery): 16.9 kg(37.26 lbs)

Bike Weight (With battery): 19.4 kg(42.77 lbs)

Gross Weight: Approx. 25.5 kg(56.22 lbs)

Frameset

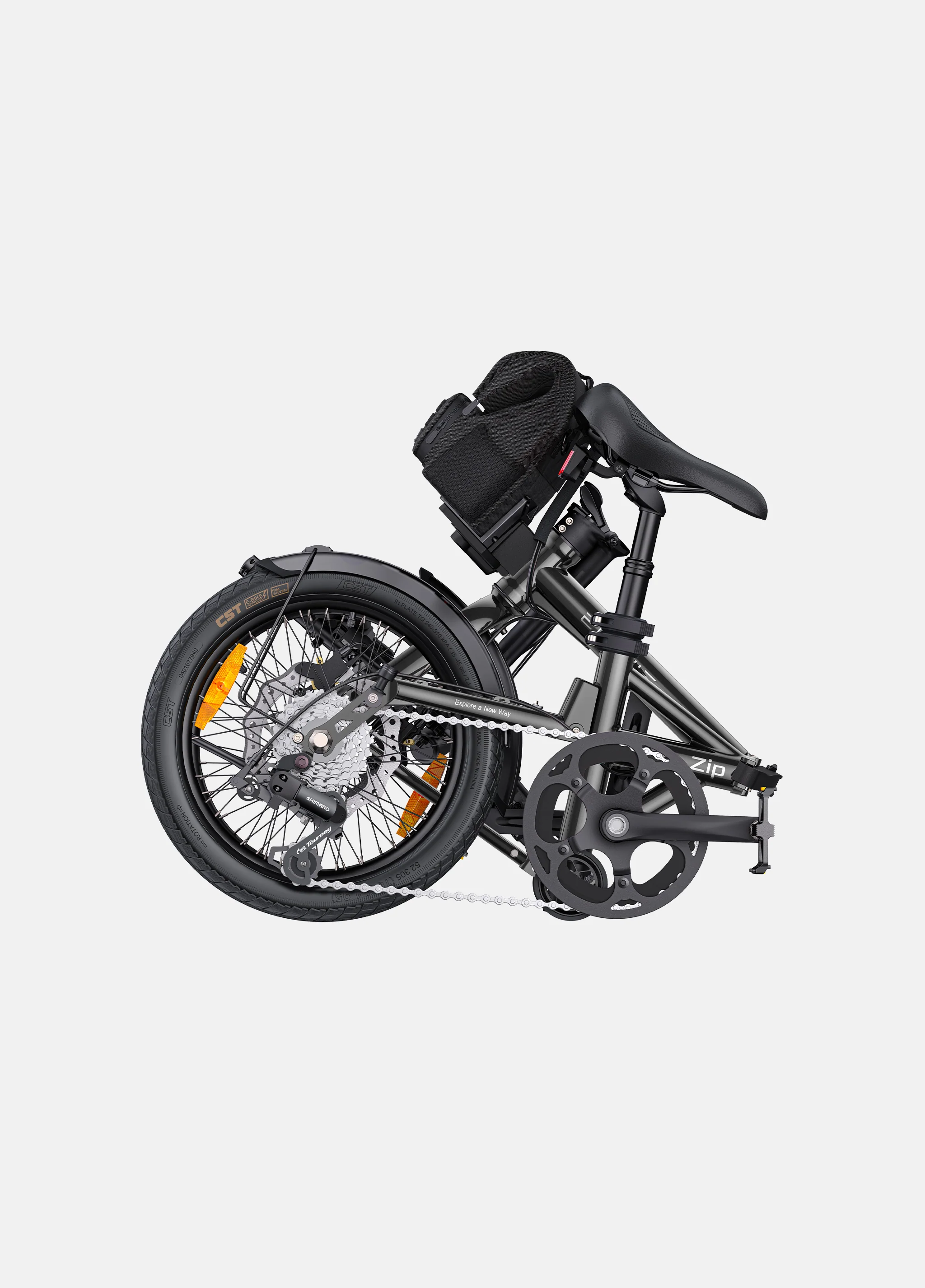

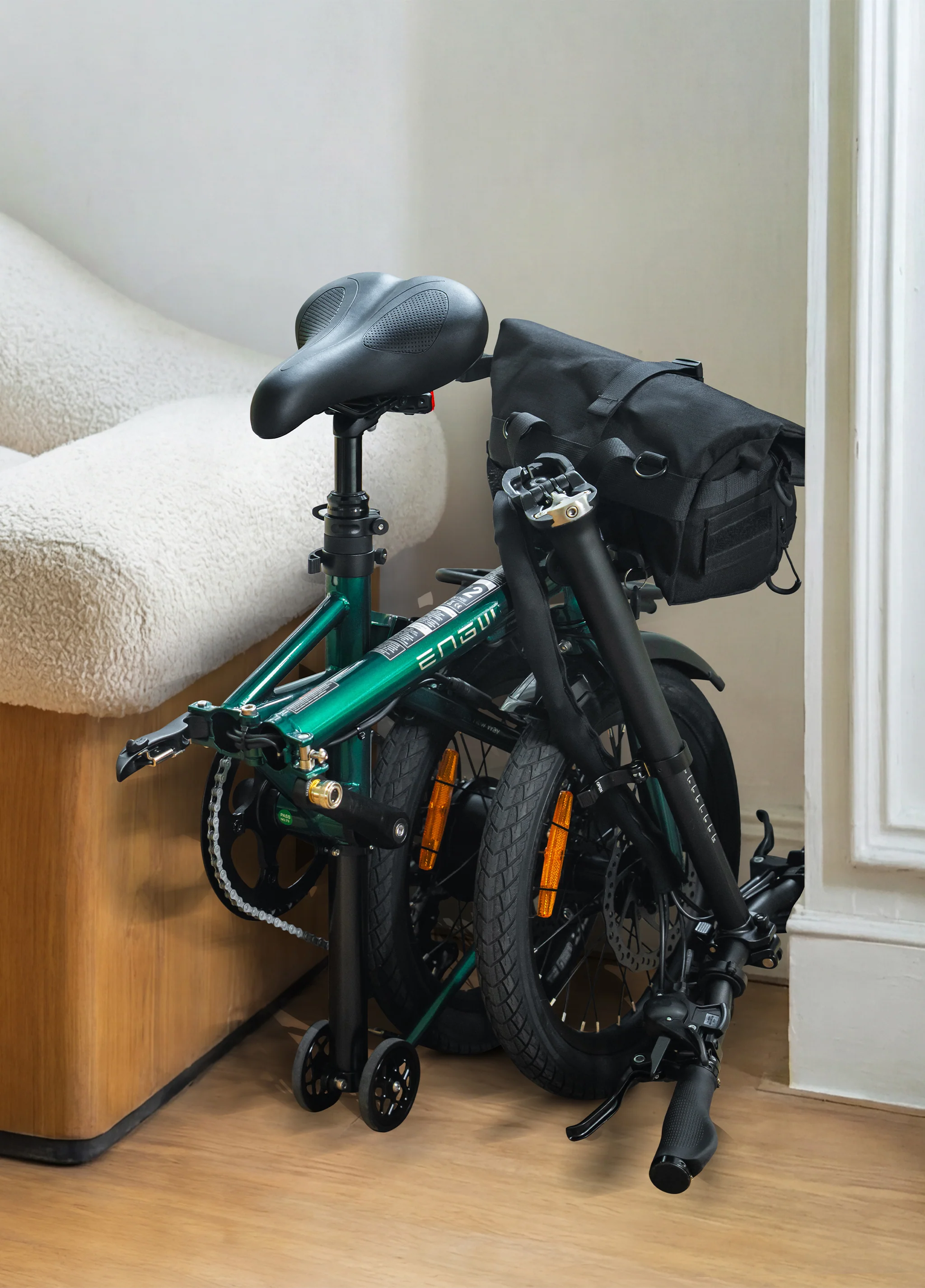

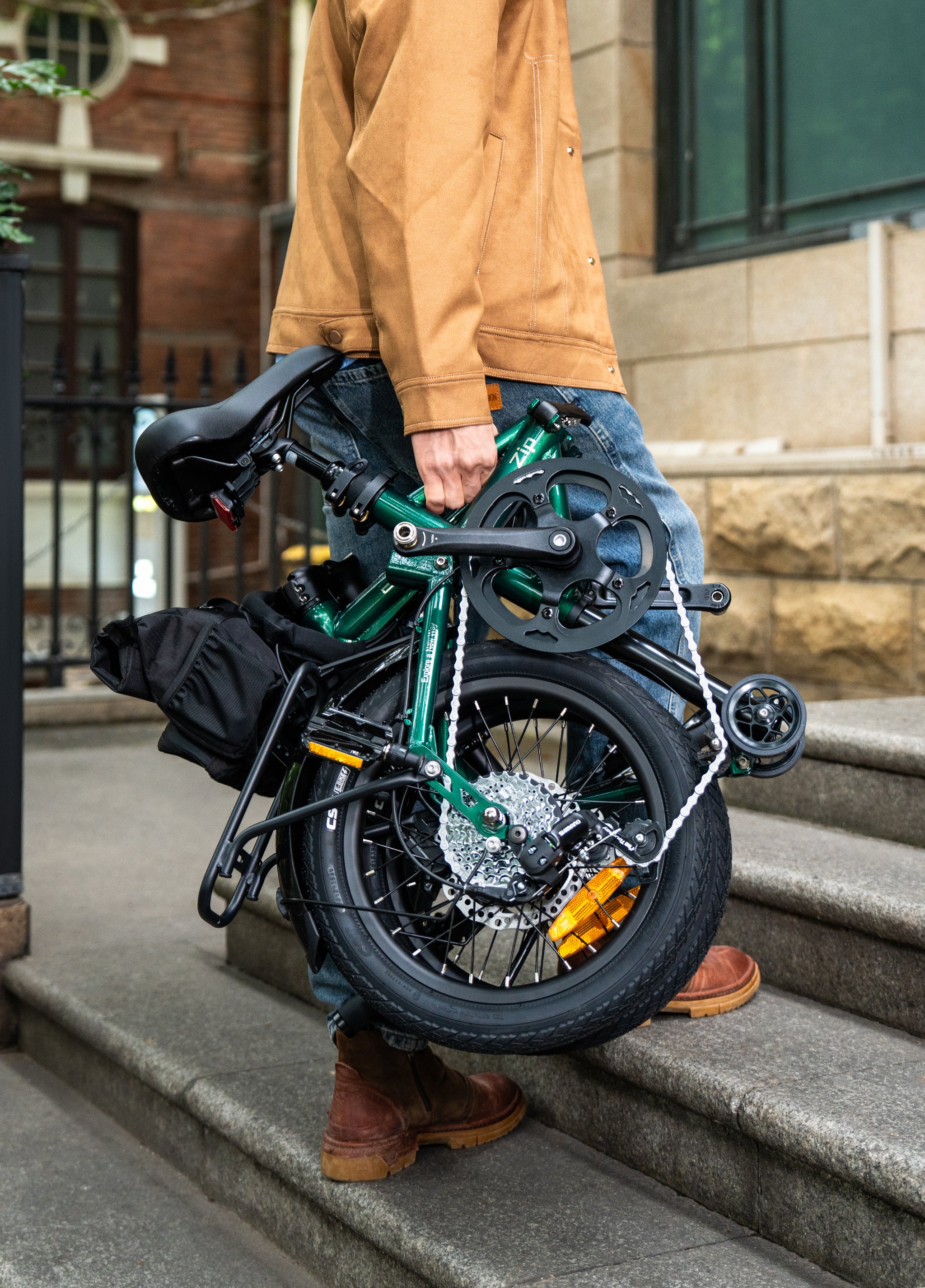

Frame: Triple Folding Design (ENGWE Exclusive Patented Design)

Fork: Single Crown Suspension Fork

Frame Material: Durable Steel Frame

Wheel Set

Tires: 16" × 1.95" Urban Hybrid Tires

Wheels: 16-inch, Steel Rim, 13G Spokes, Black

E-Bike System

Motor: 250W Rear Hub Motor (EU Legal), 36V

Max Torque：40Nm

Assist System：Torque Sensor

Battery：36V 10Ah (360Wh), LG Cells, BMS, PD 3.0 with Type-C Charging

Display: 3.2" Color LCD with Bluetooth

ENGWE App: App Control Available

Charger: 100W GaN Fast Charger with PD 3.0, USB-C (Type-C) Interface

Front Light: 30 lm LED Headlight

Rear Light: Always-On LED Taillight for Enhanced Safety

Brakes

Brakes: Hydraulic Disc Brakes

Brake Rotors: 160 mm Front & Rear

Drivetrain

Chain: KMC E8S, Anti-Rust, 98 Links

Chainring: 48T

Crank Arms: 152 mm

Rear Derailleur: Shimano Tourney RD-TY300 (7-Speed)

Shifter: Shimano SL-M315-7R Rapidfire

Cassette: 7-Speed (11–28T)

Pedals: Foldable Quick-Release Pedals

Cockpit

Saddle: Comfort Padded Saddle

Seatpost: Suspension Seatpost, 10-Level Adjustable

Handlebar: 560 mm Width

Stem: Folding Stem

Seat Clamp: Quick-Release Seat Clamp
